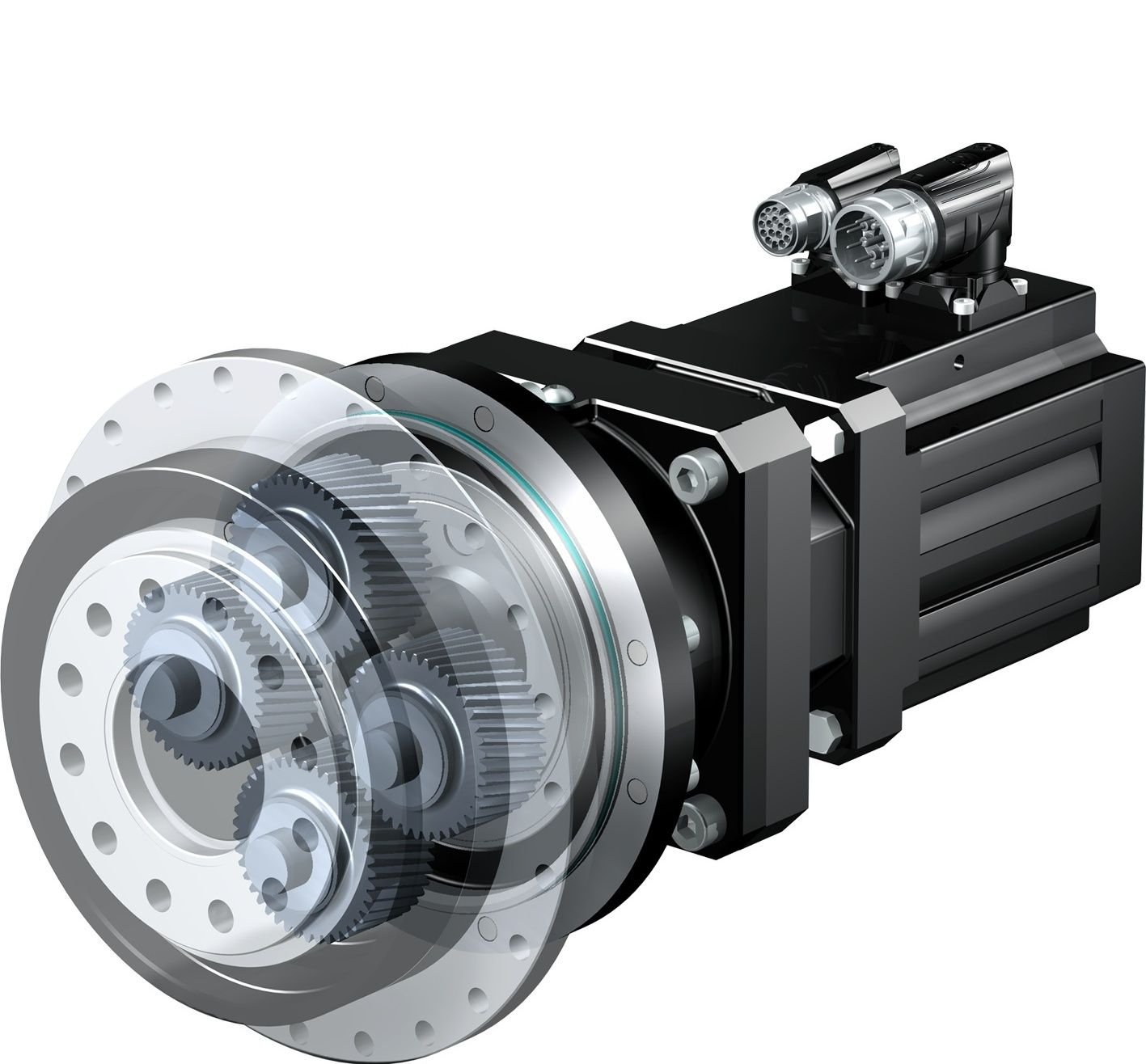

Planetary Geared Servo Motor
The GYR-188WG Planetary Geared Servo Motor is engineered for high-performance applications that demand reliability, precision, and efficiency. With a rated output torque of 70 kg-cm at 246 rpm, this motor ensures smooth and powerful operation suitable for various industrial setups. Its powertrain combines a permanent magnet-less Switched Reluctance Motor (SRM), a two-stage industrial-quality planetary gearbox, and an absolute position encoder for accurate feedback and precise control. The magnet-free design makes it highly suitable for high-temperature environments, ensuring consistent performance without degradation. Built to IP-65 protection standards, it offers resistance against dust and water ingress, making it ideal for harsh industrial conditions. Widely used in industrial automation, robotics, and special-purpose machines (SPM), the GYR-188WG stands out for its durability, low maintenance, and cost-effectiveness, making it a preferred choice for modern manufacturing and automation needs.
Motor Gear Ratio Chart
Customized geared motor as per Gear Ratio Chart (Single stage / Double Stage / Three stage)
| I | II | III | |||||
|---|---|---|---|---|---|---|---|
| 3.20 | 3.20 | 3.20 | 10.24 | 3.20 | 3.20 | 3.20 | 32.77 |
| 3.75 | 3.75 | 3.20 | 12.00 | 3.75 | 3.20 | 3.20 | 38.40 |
| 4.67 | 3.75 | 3.75 | 14.06 | 3.75 | 3.75 | 3.20 | 45.00 |
| 6.50 | 4.67 | 3.20 | 14.94 | 4.67 | 3.20 | 3.20 | 47.82 |
| 82 | 4.67 | 3.75 | 17.51 | 3.75 | 3.75 | 3.75 | 52.73 |
| 6.50 | 3.20 | 20.80 | 4.67 | 3.75 | 3.20 | 56.04 | |
| 4.67 | 4.67 | 21.81 | 4.67 | 3.75 | 3.75 | 65.67 | |
| 6.50 | 3.75 | 24.38 | 6.50 | 3.20 | 3.20 | 66.56 | |
| 6.50 | 4.67 | 30.36 | 4.67 | 4.67 | 3.20 | 69.79 | |
| 6.50 | 6.50 | 42.25 | 6.50 | 3.75 | 3.20 | 78.00 | |
| 4.67 | 4.67 | 3.75 | 81.78 | ||||
| 6.50 | 3.75 | 3.75 | 91.41 | ||||
| 6.50 | 4.67 | 3.20 | 97.14 | ||||
| 4.67 | 4.67 | 4.67 | 101.8 | ||||
| 6.50 | 4.67 | 3.75 | 113.8 | ||||
| 6.50 | 6.50 | 3.20 | 135.2 | ||||
